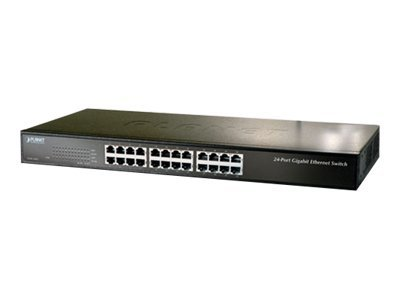

PLANET GSW-2401 - switch

24 porter - ikke-styrt
Produsent PLANET Technology
Artikkel nr. GSW-2401

Se lager og pris

  • Informasjon
    • Features store-and-forward mode with wire-speed filtering and forwarding rates
    • Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
    • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
    • Integrated address look-up engine, support 8K absolute MAC addresses
    • 9K jumbo packet support
    • Automatic address learning and address aging
    • Supports auto MDI / MDI-X function
    • Support CSMA / CD protocol
    • FCC, CE class A compliant
    The PLANET GSW-2401 is 10/100/1000Mbps Gigabit Ethernet switch with 24 ports respectively, and non-blocking wire-speed performance. With a 48Gbps internal switching fabric, the GSW-2401 can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The GSW-2401 has 8K MAC address table and provides 400KB buffer memory. The GSW-2401 offers wire-speed packets transfer performance without risk of packet loss. The high data throughput of GSW-2401 makes it ideal for most Gigabit environments, especially while network upgrades to a Gigabit environment.

    All RJ-45 copper interfaces support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. Support is standard for auto-MDI / MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

    The flow control function allows your Gigabit switch supported routers and servers to directly connect to this switch for fast, reliable data transfer.
  • Spesifikasjon
  • Nedlastbare filer
